Main characteristics：Main features: AgileLight-IM100 is an interferometric digital closed-loop single-axis fiber optic gyroscope, which has the characteristics of large working bandwidth, high resolution, small volume, small zero drift, high linearity, short start-up time, impact resistance, vibration resistance and low cost, and is a substitute for traditional mechanical gyroscopes.
Introduction to Fiber Optic Gyroscope Products

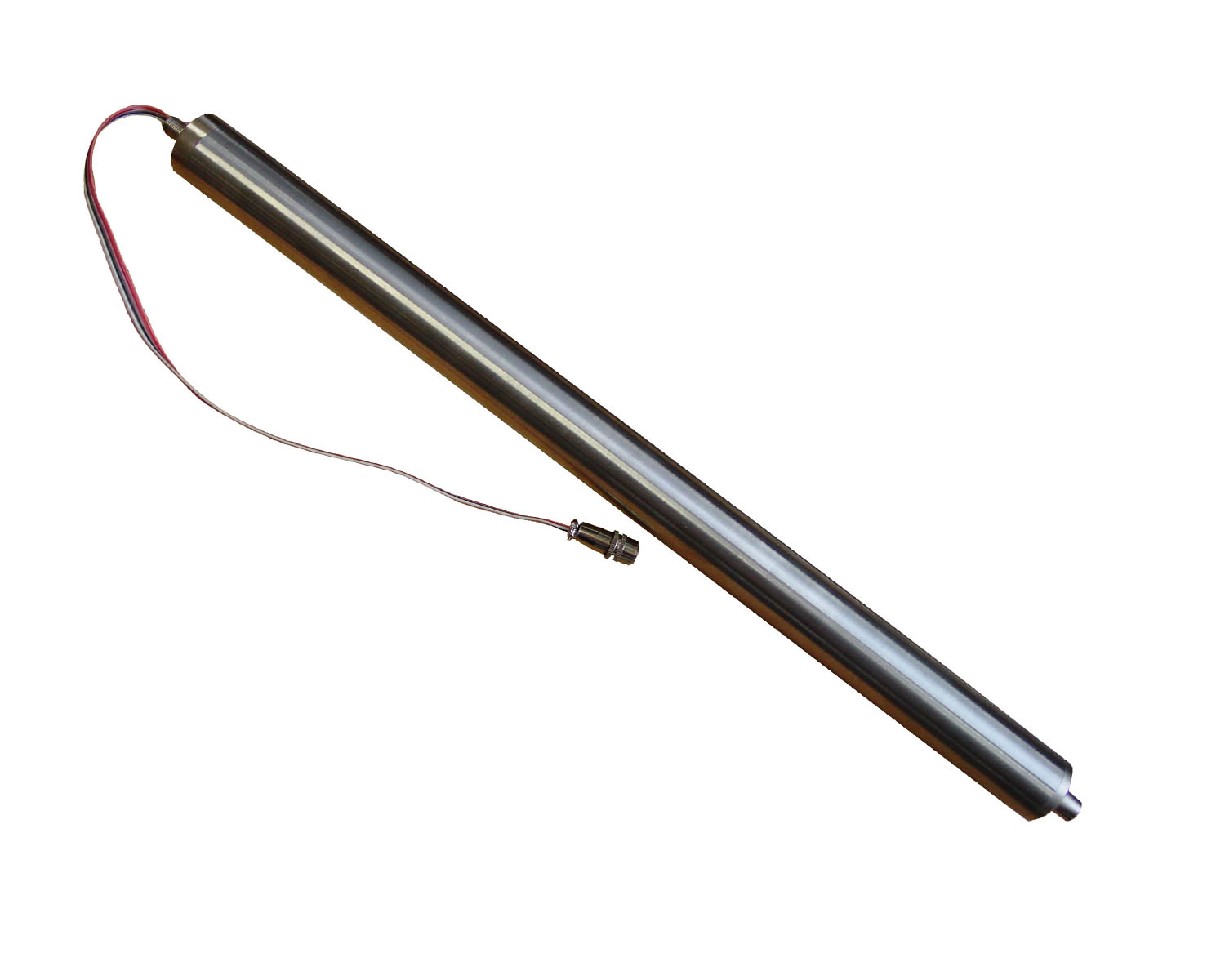

The fiber optic gyroscope AgileLight-IM100 is an interferometric digital closed-loop single axis fiber optic gyroscope, which has the characteristics of large working bandwidth, high resolution, small size, small zero drift, high linearity, short start-up time, shock resistance, vibration resistance, and low cost. It is an alternative product to traditional mechanical gyroscopes.
The AgileLight-IM100 is specifically designed for petroleum geological logging, with a diameter of only 32mm. The Earth's rotation data is output directly through the RS232 interface, which allows users to easily integrate it into the inclinometer system to calculate azimuth.
The AgileLight-IM100 fiber optic gyroscope adopts unique IntelliProcess technology, which not only minimizes the impact of temperature changes on gyroscope performance, but also significantly improves key indicators of fiber optic gyroscope such as zero bias stability, angle random walk, proportional factor linearity, and stability. The extremely 100.low zero bias stability, angle random walk, and strong anti vibration ability make it perfectly suitable for various industrial applications.
The high performance, adaptability to harsh environments, compact structure, and competitive price of the AgileLight-IM100 make it the preferred inclinometer.
The AgileLight-IM100 fiber optic gyroscope follows strict design and testing standards, and its technical specifications fully comply with the IEEE Std 952TM-1997 (R2008) standard.
Main characteristics
◆ Specially designed for the field of inclinometers, the unique technology enables the gyroscope diameter to be only 32mm, meeting the requirements of inclinometers such as oil wells and pipelines
◆ All fiber optical technology - long-life, small size, high stability, anti-interference angular velocity sensor
◆ IntelliProcess technology - built-in high-performance digital technology signal processing chip, realizing full digital working mode.
◆ The adaptive filtering technology reduces the zero drift and angle random walk of the gyroscope by 50% -75%
◆ Integrated fiber polarization technology - reduces insertion loss, improves extinction ratio, and provides better resistance to temperature, mechanical shock, and vibration performance for optical paths
Compact and highly stable packaging - suitable for various harsh environments. Widely applicable to various civilian and military occasions
◆ QuickLaunch technology - enables instantaneous start-up of gyroscopes without the need for external calibration
The optimal working wavelength - with the same structure, size, and cost, sensitivity can be increased by nearly 50%
Noise isolation and compression technology - significantly reducing angular velocity random walk
SelfTrack self phase tracking technology - improves the dynamic range of gyroscopes
Application fields of fiber optic gyroscope
◆ Suitable for various industrial occasions
Product specifications of fiber optic gyroscope
| Performance index | |
| Maximum input rotation rate(°/s) | ±30 |
| scaling factor(°/s/bit) | 0.00000725[1] |
| Scale factor nonlinearity(%rms) | 0.5[2] |
| Bias stability(°/hr 1σ) | 0.02 |
| Angular velocity resolution(°/s) | 0.0002 |
| Random walk of angular velocity(°/√hr) | 0.002 |
| Instantaneous bandwidth(Hz) | 20 |
| start time(s) | 3 |
| Electrical and environmental indicators | |
| Power supply voltage (v) | ±5VDC[1] |
| energy consumption(W) | 1.5 |
| Internal temperature detection（°C/bit） | 0.05 |
| MTBF(hr) | 55000 |
| lash(g) | 100 |
| operating ambient temperature(°C) | -40~+65 |
| Storage environment temperature(°C) | -50~+80 |
| RS232@19200Porter ；24位 | |
| Interface connector | |
| size（mm） | Φ32.0x510(cylinder) |
| weight(g) | about800 |
